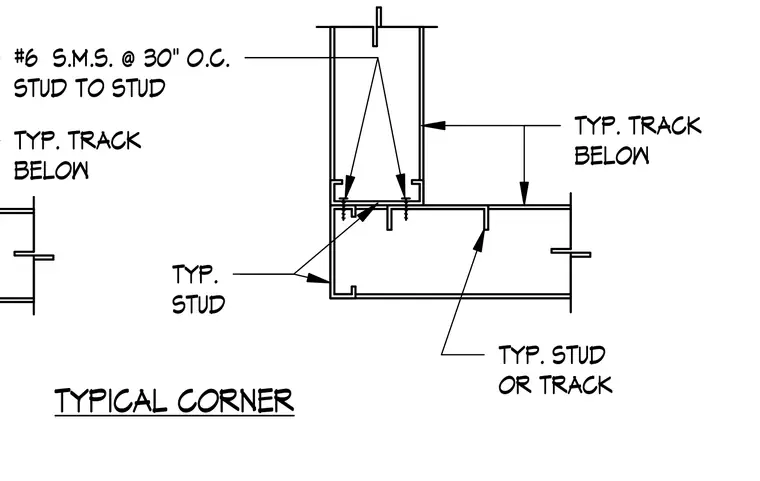

Cold-formed metal studs and tracks intersect at a standard wall corner. The framing members are fastened stud-to-stud with number six sheet metal screws spaced at thirty inches on center. Typical tracks run below with typical studs or tracks positioned adjacent.
#6 S.M.S. @ 30" O.C. STUD TO STUD TYP. TRACK BELOW TYP. STUD TYP. TRACK BELOW TYP. STUD OR TRACK TYPICAL CORNER
