This structural steel detail shows non-frame beam to hollow structural section or pipe column moment connections for both continuous and discontinuous column conditions. The assembly incorporates shear plates with thickness and geometry sized per plan, extending one-half inch at one-sided and three-sided connections. A one-quarter inch cap plate is provided where a post occurs, featuring a complete joint penetration weld at the cap plate and a complete penetration weld all around at the column splice. Bolt diameters are spaced with a maximum one-half inch typical clearance. Drag plates must continue through the column when drag connections are denoted on plan.

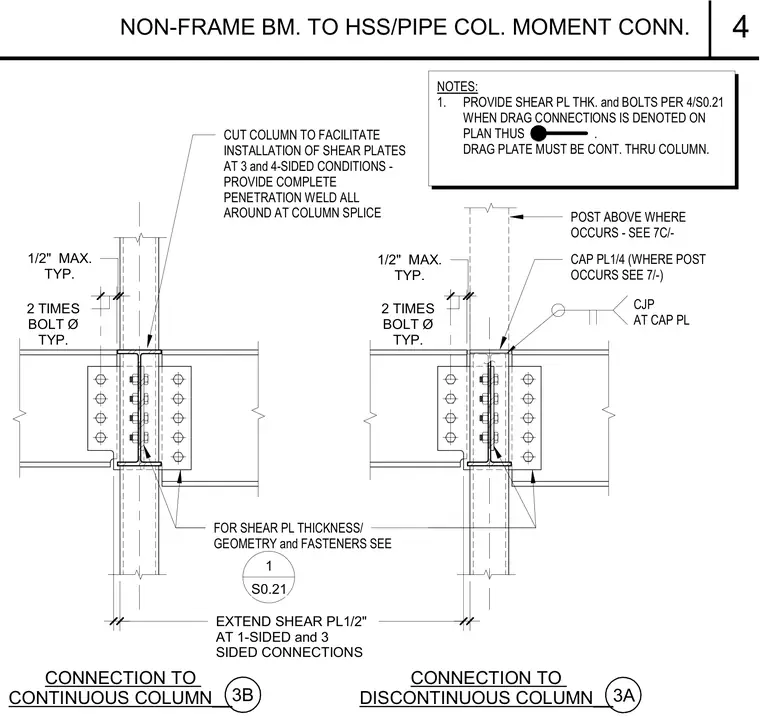

CONNECTION TO CONTINUOUS COLUMN__ 3B CUT COLUMN TO FACILITATE INSTALLATION OF SHEAR PLATES AT 3 and 4-SIDED CONDITIONS - PROVIDE COMPLETE PENETRATION WELD ALL AROUND AT COLUMN SPLICE 1 S0.21 CONNECTION TO DISCONTINUOUS COLUMN__ 3A FOR SHEAR PL THICKNESS/ GEOMETRY and FASTENERS SEE CAP PL1/4 (WHERE POST OCCURS SEE 7/-) 2 TIMES BOLT Ø TYP. 1/2" MAX. TYP. EXTEND SHEAR PL1/2" AT 1-SIDED and 3 SIDED CONNECTIONS 2 TIMES BOLT Ø TYP. 1/2" MAX. TYP. CJP AT CAP PL NOTES: 1. PROVIDE SHEAR PL THK. and BOLTS PER 4/S0.21 WHEN DRAG CONNECTIONS IS DENOTED ON PLAN THUS . DRAG PLATE MUST BE CONT. THRU COLUMN. POST ABOVE WHERE OCCURS - SEE 7C/- 4 NON-FRAME BM. TO HSS/PIPE COL. MOMENT CONN.
