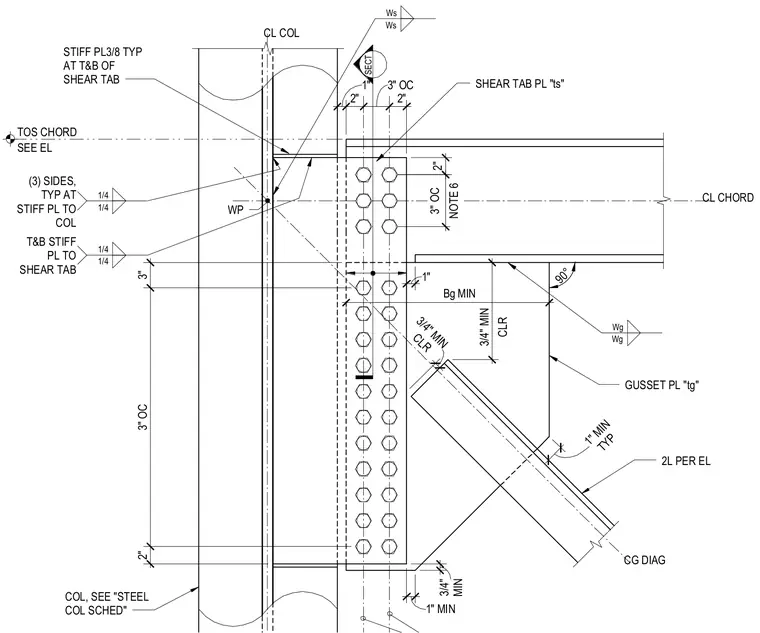

A structural steel connection details a chord and diagonal brace framing into the web of a structural column. The chord member connects via a shear plate welded to the column web with a three-sided one-quarter-inch fillet weld, featuring three-eighths-inch stiffener plates at the top and bottom of the shear tab. A gusset plate of thickness tg connects the diagonal double-angle brace to the column and shear tab assembly, welded with one-quarter-inch fillet welds spaced at three inches on center. Standard clearances and edge distances are maintained with minimum three-quarter-inch gaps around intersecting members.
SECT 1" 2" 3" OC 2" TYP 1" MIN GUSSET PL "tg" CL CHORD SHEAR TAB PL "ts" CG DIAG CL COL WP (3) SIDES, TYP AT STIFF PL TO COL 1/4 1/4 1" MIN MIN 3/4" Ws Ws Wg Wg 3" 3" OC 2" SEE EL TOS CHORD 2L PER EL STIFF PL3/8 TYP AT T&B OF SHEAR TAB Bg MIN 6" 2" 1" CLR 3/4" MIN COL, SEE "STEEL COL SCHED" CLR 3/4" MIN 90° T&B STIFF PL TO SHEAR TAB 1/4 1/4 3" OC NOTE 6
