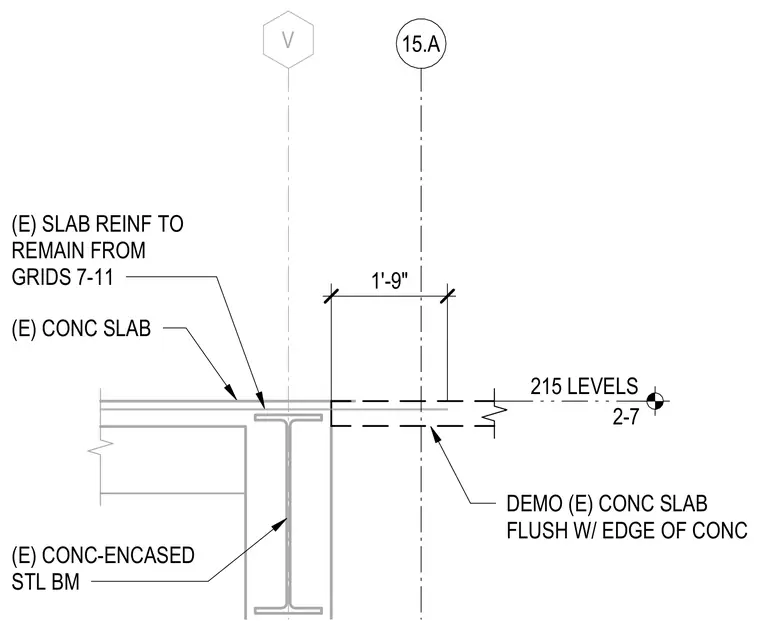

An existing concrete slab bears over an existing concrete-encased steel beam with existing slab reinforcement designated to remain from grids seven through eleven. A one-foot nine-inch extension of the existing concrete slab is marked for demolition flush with the edge of the concrete. Existing slab reinforcement continues past the grid line with level references indicated.
V 15.A (E) CONC SLAB (E) CONC-ENCASED STL BM DEMO (E) CONC SLAB FLUSH W/ EDGE OF CONC 1'-9" (E) SLAB REINF TO REMAIN FROM GRIDS 7-11 2-7 215 LEVELS
