Structural · S-RS97W

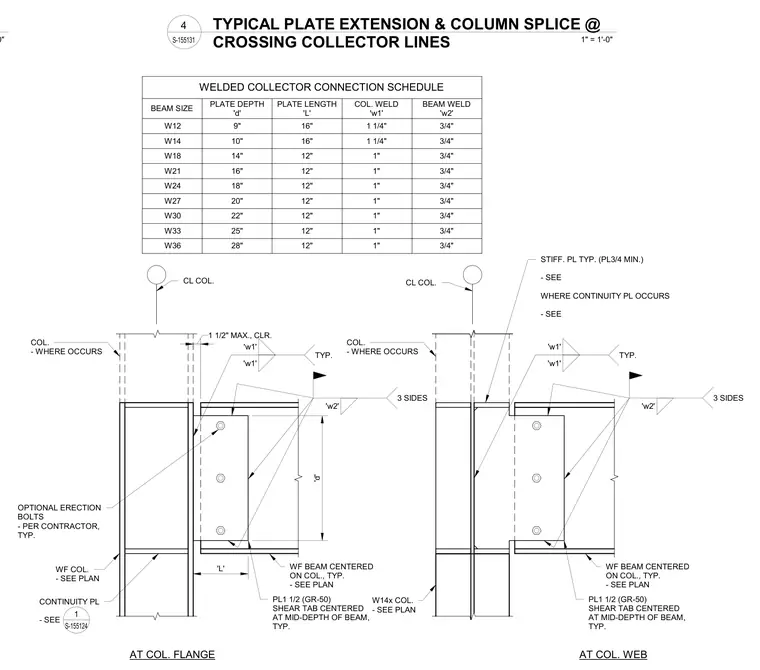

Typical Plate Extension and Column Splice at Crossing Collector Lines

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Shear Tab / Single Plate Welded Connection Bolted Connection Rebar Splice / Development

About this detail

A typical plate extension and column splice at crossing collector lines features wide-flange beams centered on wide-flange columns with a one and a half inch maximum clearance. A one and a half inch Grade 50 shear tab is centered at the mid-depth of the beam and welded with size w2 on three sides. Stiffener plates with a three-quarter inch minimum thickness and continuity plates are provided where required, along with optional erection bolts per the contractor. A welded collector connection schedule correlates beam sizes from W12 to W36 with plate depths, plate lengths, column welds w1, and beam welds w2.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
