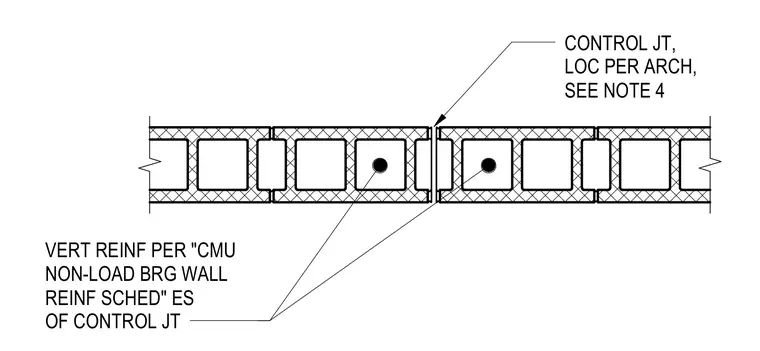

A vertical control joint is positioned within concrete masonry unit walls at locations determined by the architect and referenced notes. Vertical reinforcement is placed on each side of the control joint in accordance with the concrete masonry unit non-load bearing wall reinforcement schedule.
CONTROL JT, LOC PER ARCH, SEE NOTE 4 VERT REINF PER "CMU NON-LOAD BRG WALL REINF SCHED" ES OF CONTROL JT
