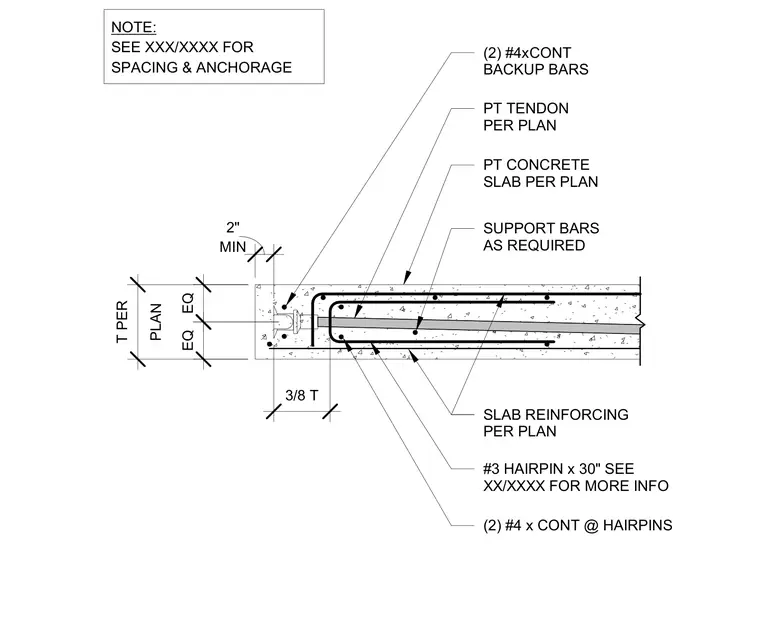

A post-tensioned concrete slab dead end anchorage assembly features two continuous number four backup bars and two number four continuous hairpins surrounding the tendon termination. Support bars are placed as required, with slab reinforcing sized per plan. Spacing and anchorage details comply with the referenced structural drawings, maintaining a minimum two-inch clearance.
(2) #4xCONT BACKUP BARS PT TENDON PER PLAN PT CONCRETE SLAB PER PLAN (2) #4 x CONT @ HAIRPINS NOTE: SEE XXX/XXXX FOR SPACING & ANCHORAGE EQ EQ MIN 2" 3/8 T PLAN T PER SUPPORT BARS AS REQUIRED SLAB REINFORCING PER PLAN #3 HAIRPIN x 30" SEE XX/XXXX FOR MORE INFO
