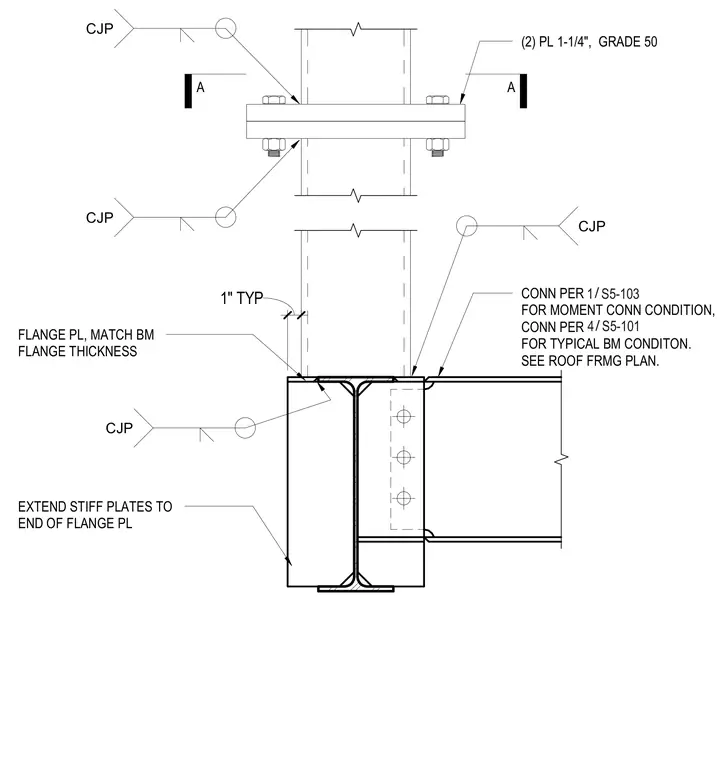

Two 1-1/4 inch Grade 50 flange plates match the beam flange thickness and connect to the column stub using complete joint penetration welds. Stiffener plates extend to the end of the flange plates and are welded with complete joint penetration welds. The beam connection is detailed per sheet S5-103 for moment conditions and sheet S5-101 for typical beam conditions as shown on the roof framing plan.
(2) PL 1-1/4", GRADE 50 FLANGE PL, MATCH BM FLANGE THICKNESS CJP EXTEND STIFF PLATES TO END OF FLANGE PL CONN PER FOR MOMENT CONN CONDITION, CONN PER FOR TYPICAL BM CONDITON. SEE ROOF FRMG PLAN. / 1 S5-103 1" TYP / 4 S5-101 CJP CJP A A CJP
