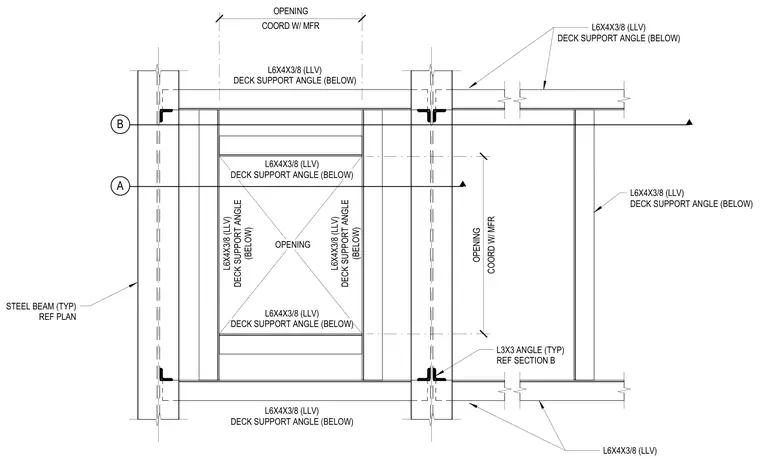

This plan detail shows structural steel framing around a floor or roof opening supported by L6x4x3/8 deck support angles placed below. Typical steel beams frame the perimeter of the opening with dimensions and layout coordinated with the manufacturer. Typical L3x3 angles are provided at specific junctions per reference sections. The framing assembly accommodates equipment penetrations and maintains structural load paths around the opening.
OPENING A L6X4X3/8 (LLV) DECK SUPPORT ANGLE (BELOW) L6X4X3/8 (LLV) DECK SUPPORT ANGLE (BELOW) L6X4X3/8 (LLV) DECK SUPPORT ANGLE (BELOW) COORD W/ MFR OPENING COORD W/ MFR OPENING L6X4X3/8 (LLV) DECK SUPPORT ANGLE (BELOW) B L6X4X3/8 (LLV) DECK SUPPORT ANGLE (BELOW) L6X4X3/8 (LLV) DECK SUPPORT ANGLE (BELOW) L6X4X3/8 (LLV) L6X4X3/8 (LLV) DECK SUPPORT ANGLE (BELOW) STEEL BEAM (TYP) REF PLAN L3X3 ANGLE (TYP) REF SECTION B L6X4X3/8 (LLV) DECK SUPPORT ANGLE (BELOW)
