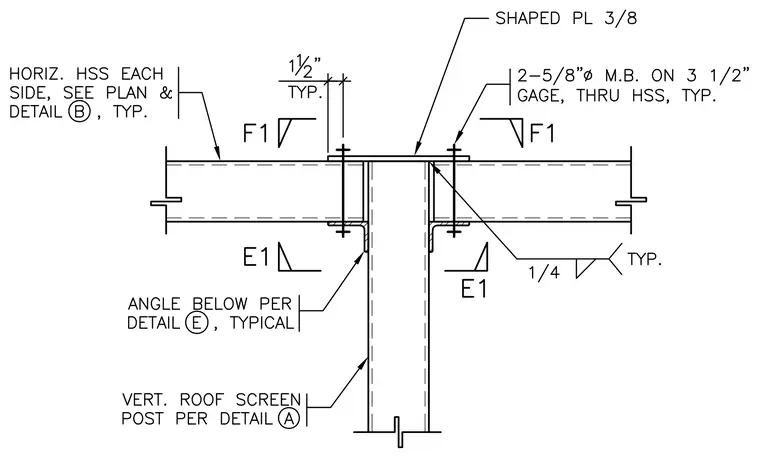

Horizontal hollow structural sections frame into each side of a vertical roof screen post, secured at the top by a three-eighths-inch shaped plate with two five-eighths-inch diameter machine bolts on a three-and-a-half-inch gauge passing through the hollow structural section. The connection is detailed with a one-quarter-inch typical fillet weld and F1 field welds at the top plate. An angle below is positioned per detail E, with E1 field welds securing the assembly. Horizontal hollow structural sections are placed each side per plan and detail B, while the vertical roof screen post is detailed per detail A with a one-and-a-half-inch typical dimension.
