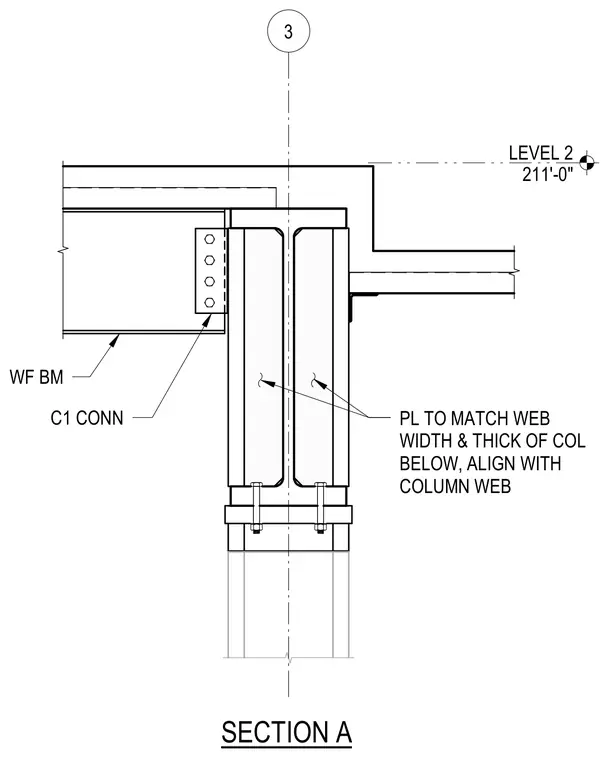

A wide flange beam connects to a steel column using a connection plate aligned with the column web. Additional connection plates match the width and thickness of the column web below and align with the column web. Level 2 is established at elevation 211'-0".
LEVEL 2 211'-0" 3 SECTION A WF BM C1 CONN PL TO MATCH WEB WIDTH & THICK OF COL BELOW, ALIGN WITH COLUMN WEB
