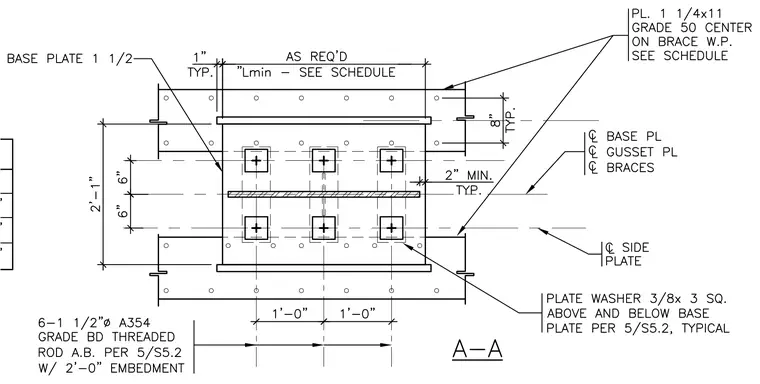

A structural gusset plate assembly connects braced frames using a one-and-a-half-inch base plate and grade fifty center plate sized per the schedule. Six one-and-a-half-inch diameter A354 Grade BD threaded anchor rods with two-foot embedment secure the base plate. Three-eighths by three-inch square plate washers are positioned above and below the base plate. Side plates and center plates align with the brace work point and centerlines of the gusset plate and braces.
