Structural · S-RQJMT

Typical Deck Welding at Supports

Materials

weld

Elements

Roofs Decks

Connections

Welded Connection Deck Attachment

About this detail

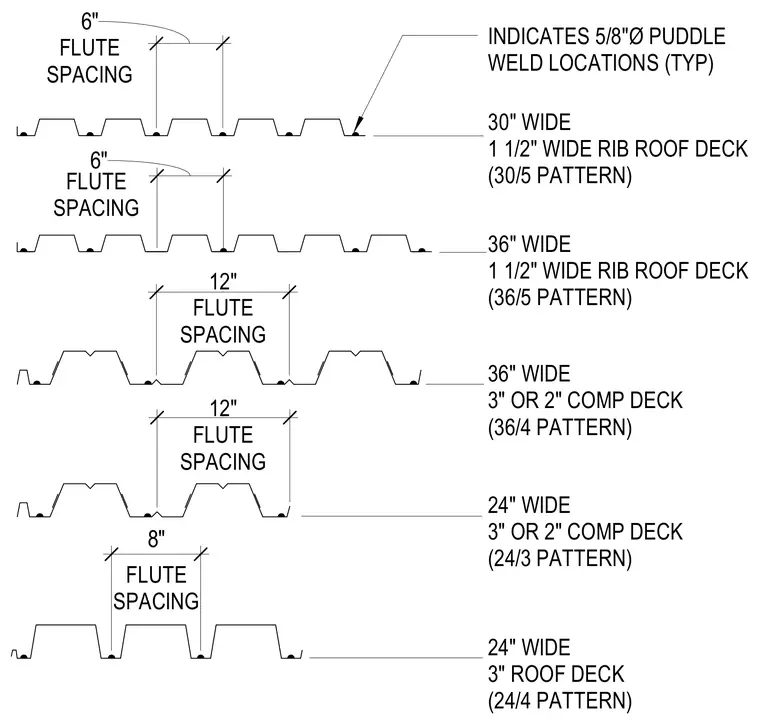

Standard puddle weld configurations and flute spacings for steel roof and composite deck profiles are provided across five distinct deck profiles: thirty-inch wide one-and-a-half-inch wide rib roof deck in a thirty-slash-five pattern, thirty-six-inch wide one-and-a-half-inch wide rib roof deck in a thirty-six-slash-five pattern, thirty-six-inch wide three-inch or two-inch composite deck in a thirty-six-slash-four pattern, twenty-four-inch wide three-inch or two-inch composite deck in a twenty-four-slash-three pattern, and twenty-four-inch wide three-inch roof deck in a twenty-four-slash-four pattern. Puddle weld locations are indicated as five-eighths-inch diameter typically at the flute spacings ranging from six inches to twelve inches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
