Fence Post Base Plate and Concrete Footing Details

Materials

Concrete Steel Masonry / CMU

Elements

Columns Walls Foundations / Footings Site / Paving Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Embed Plate

About this detail

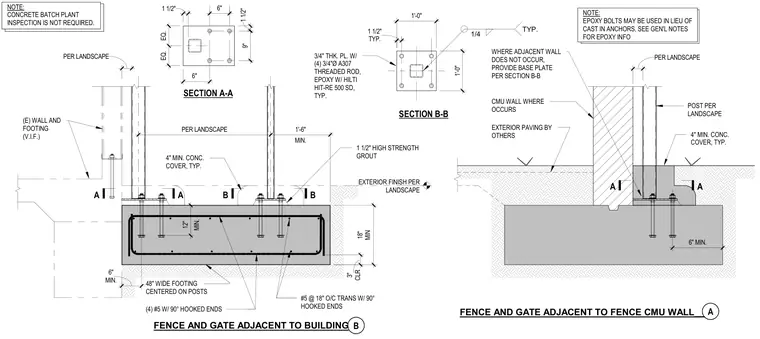

Fence post base plate connections anchor to concrete footings adjacent to both an existing building and a concrete masonry unit wall. The assembly features a three-quarter-inch thick base plate secured with four three-quarter-inch diameter A307 threaded rods epoxy-anchored using Hilti HIT-RE 500 SD, resting on a one-and-a-half-inch high-strength grout pad. The forty-eight-inch wide concrete footing is reinforced with number five bars at eighteen inches on center transversely with ninety-degree hooked ends, plus four longitudinal number five bars with ninety-degree hooked ends, maintaining a minimum four-inch concrete cover and three-inch concrete clearance. Where adjacent walls do not occur, base plates are detailed per section B-B, and exterior paving and finishes are provided by others.
