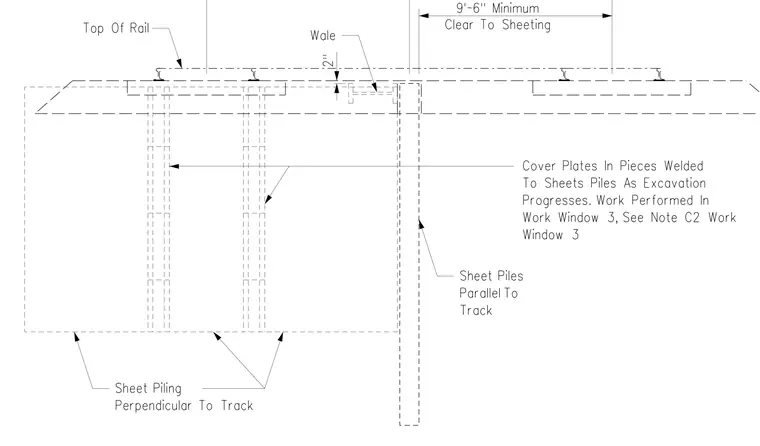

This structural detail shows sheet piling running parallel and perpendicular to the track with a minimum nine-foot six-inch clear distance to the sheeting. Cover plates are installed in pieces and welded to the sheet piles as excavation progresses, performed within work windows per note C2. A structural wale is positioned two inches below the top of rail assembly.
9’-6" Minimum Clear To Sheeting Wale 2 " Track Parallel To Sheet Piles Perpendicular To Track Sheet Piling Top Of Rail Window 3 Work Window 3, See Note C2 Work Progresses. Work Performed In To Sheets Piles As Excavation Cover Plates In Pieces Welded
