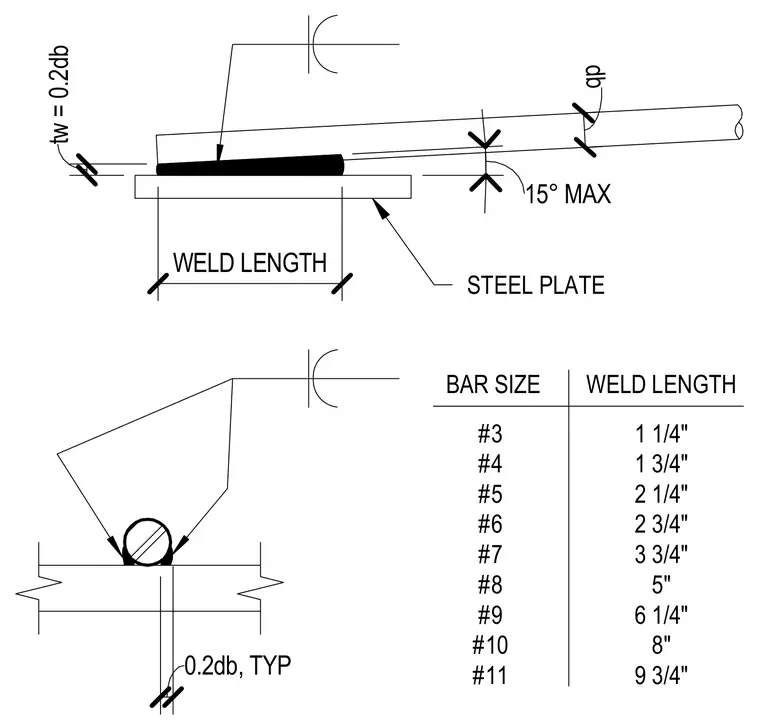

A reinforcing bar runs parallel to a steel plate with a maximum angle of fifteen degrees and a typical throat thickness equal to two-tenths of the bar diameter. The weld length varies by bar size, ranging from one and one-quarter inches for a number three bar up to nine and three-quarter inches for a number eleven bar. Fillet welds secure the bar to the steel plate based on the specified dimensional schedule.
BAR SIZE WELD LENGTH #3 #4 #5 #6 #7 #8 #9 #10 #11 1 1/4" 1 3/4" 2 1/4" 2 3/4" 3 3/4" 5" 6 1/4" 8" 9 3/4" tw = 0.2db db WELD LENGTH STEEL PLATE 0.2db, TYP 15° MAX
