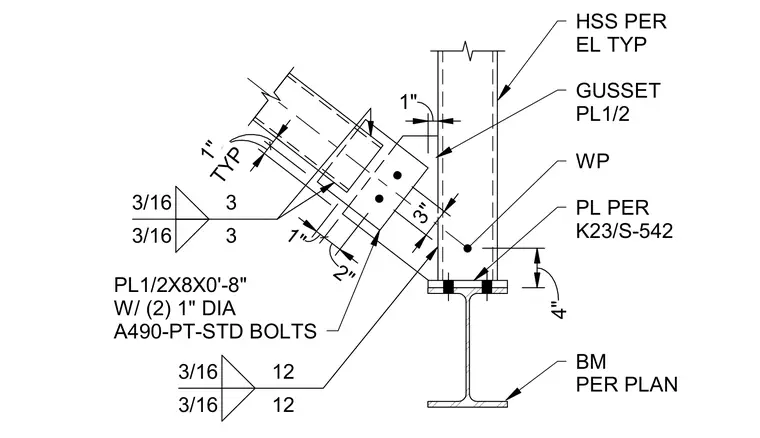

This connection details a half-inch thick gusset plate welded to an HSS column and a supporting beam sized per plan. The diagonal member connects to the gusset plate using a half-inch by 8-inch by 8-inch plate secured with two 1-inch diameter A490-PT-STD bolts. Fillet welds of 3/16-inch size with 3-inch and 12-inch spacings secure the connection assemblies.
3/16 12 3/16 12 3" 4" 1" 2" 3/16 3 3/16 3 BM PER PLAN 1" GUSSET PL1/2 PL1/2X8X0'-8" W/ (2) 1" DIA A490-PT-STD BOLTS PL PER Q WP HSS PER EL TYP TYP 1" TYP 1" K23/S-542
