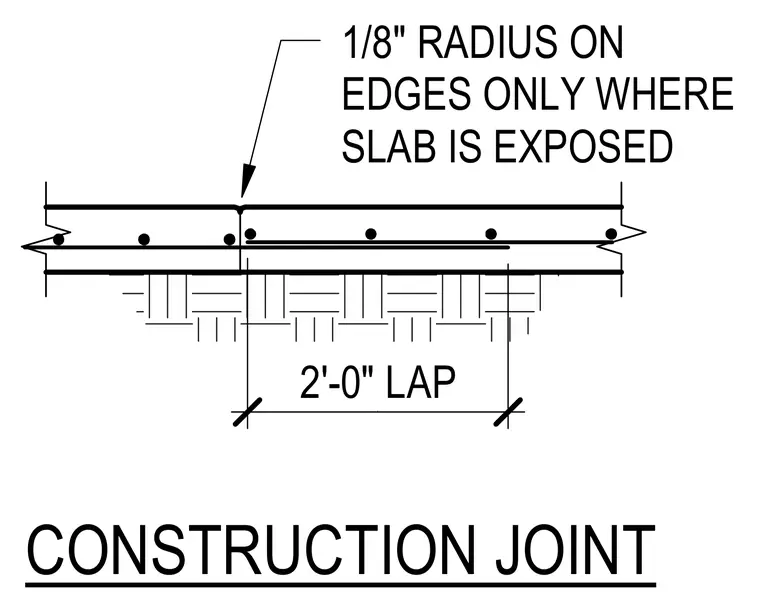

A concrete slab features a construction joint over a sub-base layer with reinforcing steel maintaining a two-foot lap splice across the joint. The concrete edges at the joint receive a one-eighth-inch radius only where the slab remains exposed to view.
