Structural · S-RQ4YF

HSS Girt Flyby at Column Parallel to Column Web

Materials

Steel

Elements

Beams

Connections

HSS Connection

About this detail

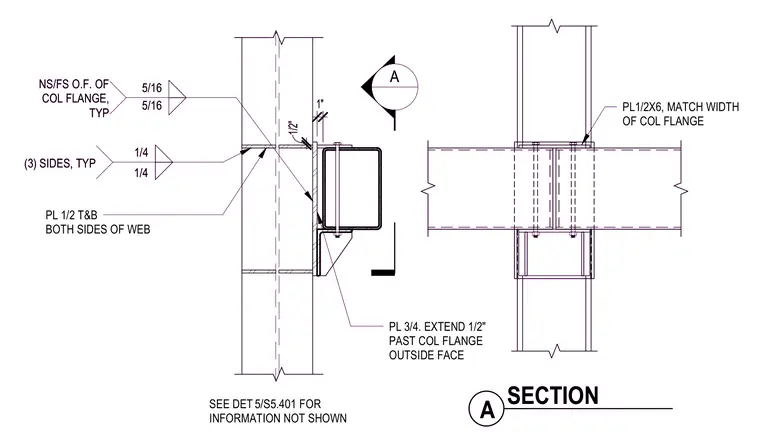

This structural steel detail shows an HSS girt connection flying past a column parallel to the column web, utilizing a one-half inch by six-inch plate matching the column flange width. Half-inch top and bottom plates are provided on both sides of the web, welded with quarter-inch welds on three sides typically. A three-quarter-inch plate extends one-half inch past the outside face of the column flange and is secured with five-sixteenths welds on near and far sides of the column flange typically. Additional information is referenced to detail five on sheet S5.401.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
