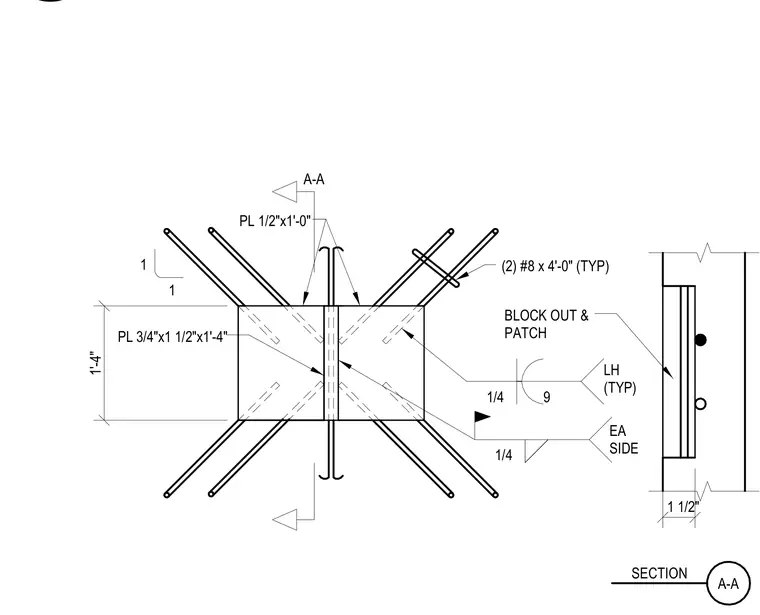

Two adjacent structural panels are tied together using embedded steel plates and reinforcing dowels. A three-quarter-inch by one-and-a-half-inch by one-foot-four-inch steel plate spans the joint, flanked by half-inch by one-foot plates. Two number eight reinforcing bars measuring four feet long are embedded in each side as typical dowels. Fillet welds connect the plate assemblies on each side. A block-out is provided for field patching around the connection assembly.
1 1/2" 1'-4" A-A SECTION LH (TYP) EA SIDE 1 1 PL 3/4"x1 1/2"x1'-4" PL 1/2"x1'-0" (2) #8 x 4'-0" (TYP) BLOCK OUT & PATCH 1/4 1/4 9 A-A
