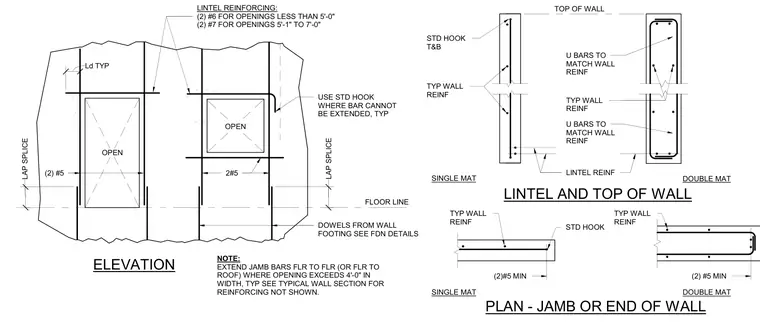

Reinforced concrete wall details show opening jambs, lintels, and top-of-wall conditions for both single and double mat reinforcement. Lintels utilize two number six bars for openings less than five feet wide and two number seven bars for openings from five feet one inch to seven feet wide, with standard hooks provided where bars cannot be extended. Wall jamb bars extend floor to floor or floor to roof when openings exceed four feet in width, and lap splices are provided with a length of Ld. Standard hooks are used top and bottom, with two number five minimum bars at wall ends and U bars matching the main wall reinforcement.
ELEVATION LINTEL AND TOP OF WALL PLAN - JAMB OR END OF WALL SINGLE MAT OPEN 2#5 OPEN FLOOR LINE LINTEL REINF SINGLE MAT DOUBLE MAT DOUBLE MAT TOP OF WALL LINTEL REINFORCING: (2) #6 FOR OPENINGS LESS THAN 5'-0" (2) #7 FOR OPENINGS 5'-1" TO 7'-0" USE STD HOOK WHERE BAR CANNOT BE EXTENDED, TYP DOWELS FROM WALL FOOTING SEE FDN DETAILS NOTE: EXTEND JAMB BARS FLR TO FLR (OR FLR TO ROOF) WHERE OPENING EXCEEDS 4'-0" IN WIDTH, TYP SEE TYPICAL WALL SECTION FOR REINFORCING NOT SHOWN. TYP WALL REINF STD HOOK U BARS TO MATCH WALL REINF TYP WALL REINF U BARS TO MATCH WALL REINF STD HOOK T&B (2) #5 MIN (2)#5 MIN TYP WALL REINF TYP WALL REINF Ld TYP LAP SPLICE LAP SPLICE (2) #5
