Metal deck panels bear on a wide flange beam per plan with optional shear studs or deck support attachments. Filler plates of fifty-four mil minimum thickness are provided where required beneath the deck, secured with one-eighth inch fillet welds at twelve inches on center typically. Closure plates of thirty-three mil minimum are placed at each end with cut and bend high flutes along the beam length. Z-shape plates of fifty-four mil minimum with three-inch flanges are detailed at transitions within three inches of support. Alternate deck attachment uses number fourteen sheet metal screws at twelve inches on center matching the deck section.

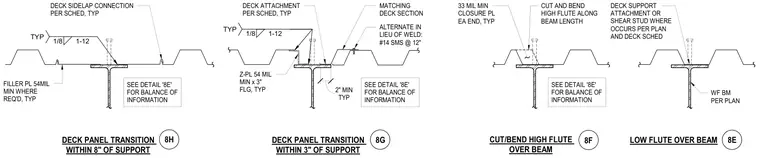

WF BM PER PLAN CUT AND BEND HIGH FLUTE ALONG BEAM LENGTH 33 MIL MIN CLOSURE PL EA END, TYP SEE DETAIL '8E' FOR BALANCE OF INFORMATION LOW FLUTE OVER BEAM 8E CUT/BEND HIGH FLUTE OVER BEAM SEE DETAIL '8E' FOR BALANCE OF INFORMATION DECK PANEL TRANSITION WITHIN 3" OF SUPPORT 1/8 1-12 TYP Z-PL 54 MIL MIN x 3" FLG, TYP DECK PANEL TRANSITION WITHIN 8" OF SUPPORT DECK SIDELAP CONNECTION PER SCHED, TYP FILLER PL 54MIL MIN WHERE REQ'D, TYP 1/8 1-12 TYP SEE DETAIL '8E' FOR BALANCE OF INFORMATION DECK ATTACHMENT PER SCHED, TYP ALTERNATE IN LIEU OF WELD: #14 SMS @ 12" MATCHING DECK SECTION TYP 2" MIN DECK SUPPORT ATTACHMENT OR SHEAR STUD WHERE OCCURS PER PLAN AND DECK SCHED 8F 8G 8H
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
