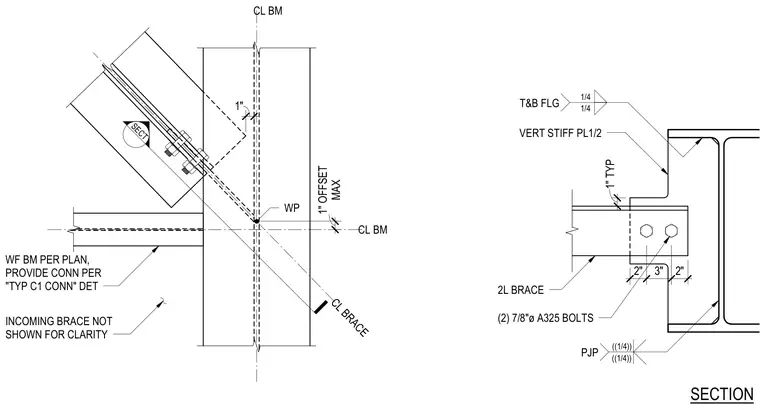

This structural steel detail shows a braced frame gusset plate connection with a maximum one-inch offset from the beam centerline. The incoming double-angle brace connects to the gusset plate using two 7/8-inch diameter A325 bolts. Vertical 1/2-inch stiffener plates are welded to the top and bottom flanges of the wide-flange beam with 1/4-inch fillet welds and partial joint penetration welds at the web. A wide-flange beam per plan connects to the assembly with a typical connection detail. The incoming brace is offset from the work point by up to one inch.
SECT 1" WP WF BM PER PLAN, PROVIDE CONN PER "TYP C1 CONN" DET MAX 1" OFFSET INCOMING BRACE NOT SHOWN FOR CLARITY CL BRACE CL BM CL BM SECTION 2" 3" 2" 1" TYP 2L BRACE (2) 7/8"ø A325 BOLTS PJP ((1/4)) ((1/4)) VERT STIFF PL1/2 T&B FLG 1/4 1/4
