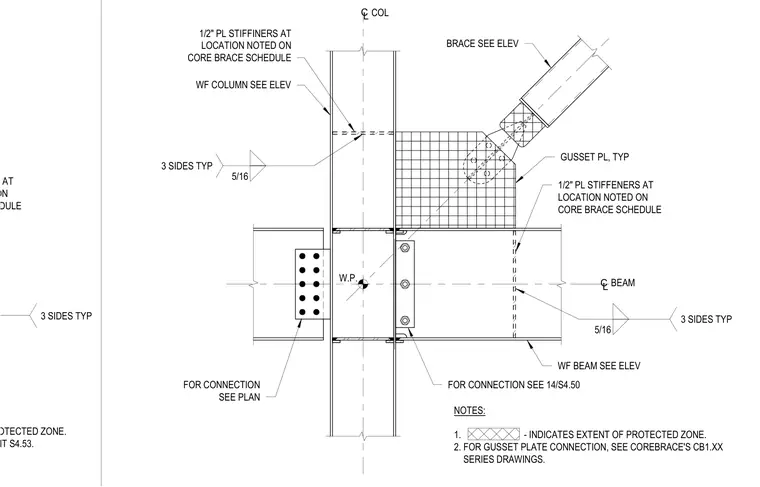

A bottom connection for a buckling-restrained brace frames into a wide-flange column and wide-flange beam intersection along the strong axis. A gusset plate connects the brace to the column and beam web, backed by half-inch plate stiffeners welded with five-sixteenth-inch fillet welds on three sides typical. The beam-to-column connection utilizes a bolted shear tab on one side and a bolted flange plate on the other, sized per the structural plans. Hatching indicates the extent of the protected zone around the brace connection. Gusset plate connection details follow the manufacturer's series drawings.
CL COL BRACE SEE ELEV GUSSET PL, TYP 1/2" PL STIFFENERS AT LOCATION NOTED ON CORE BRACE SCHEDULE CL BEAM WF BEAM SEE ELEV FOR CONNECTION SEE 14/S4.50 FOR CONNECTION SEE PLAN W.P. 1/2" PL STIFFINERS AT LOCATION NOTED ON CORE BRACE SCHEDULE WF COLUMN SEE ELEV 5/16 3 SIDES TYP NOTES: 1. - INDICATES EXTENT OF PROTECTED ZONE. 2. FOR GUSSET PLATE CONNECTION, SEE COREBRACE'S CB1.XX SERIES DRAWINGS. 5/16 3 SIDES TYP 1/2" PL STIFFENERS AT LOCATION NOTED ON CORE BRACE SCHEDULE 1. - INDICATES EXTENT OF PROTECTED ZONE. 2. FOR GUSSET PLATE CONNECTION, SEE SHT S4.53. 3 SIDES TYP
