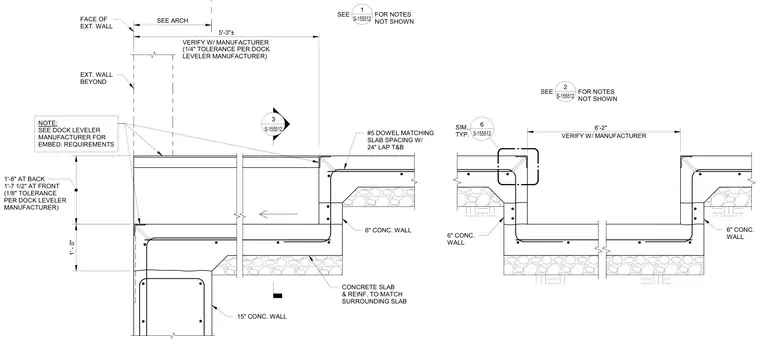

A concrete loading dock pit assembly features a fifteen-inch concrete wall supporting a depressed concrete slab with six-inch concrete walls. Number five dowels matching the slab spacing with a twenty-four-inch top and bottom lap tie the slab to the surrounding construction. Dimensions indicate a pit depth of one foot eight inches at the back and one foot seven and one-half inches at the front, with a five-foot three-inch span verified with the manufacturer. A note directs the builder to consult the dock leveler manufacturer for embedment requirements and specific tolerances.
5'-3"± VERIFY W/ MANUFACTURER (1/4" TOLERANCE PER DOCK LEVELER MANUFACTURER) SEE ARCH FACE OF EXT. WALL EXT. WALL BEYOND NOTE: SEE DOCK LEVELER MANUFACTURER FOR EMBED. REQUIREMENTS 1'-8" AT BACK 1'-7 1/2" AT FRONT (1/8" TOLERANCE PER DOCK LEVELER MANUFACTURER) 15" CONC. WALL 6" CONC. WALL #5 DOWEL MATCHING SLAB SPACING W/ 24" LAP T&B CONCRETE SLAB & REINF. TO MATCH SURROUNDING SLAB 1' - 0" SEE FOR NOTES NOT SHOWN 1 S-155512 3 S-155512 SIM., TYP. 6" CONC. WALL 6" CONC. WALL VERIFY W/ MANUFACTURER 6'-2" S-155512 6 SEE FOR NOTES NOT SHOWN 2 S-155512
