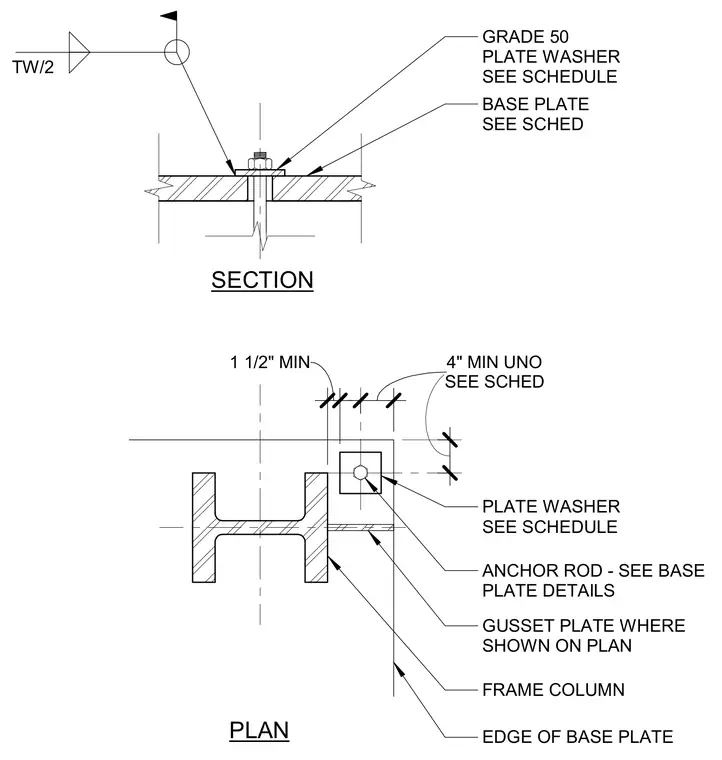

An HSS or wide-flange frame column sits atop a base plate sized per the structural schedule, secured by anchor rods with grade 50 plate washers. A gusset plate connects where shown on the plan. The anchor rod maintains a minimum one and a half inch edge distance to the column and a four inch minimum edge distance to the edge of the base plate unless noted otherwise.
GUSSET PLATE WHERE SHOWN ON PLAN FRAME COLUMN EDGE OF BASE PLATE PLATE WASHER SEE SCHEDULE ANCHOR ROD - SEE BASE PLATE DETAILS GRADE 50 PLATE WASHER SEE SCHEDULE PLAN SECTION TW/2 SEE SCHED 4" MIN UNO BASE PLATE SEE SCHED 1 1/2" MIN
