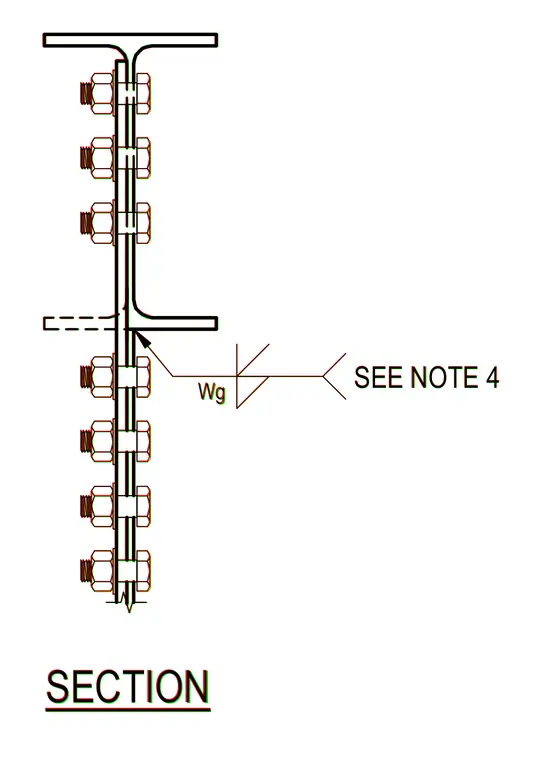

A structural tee section connects to a matching web or flange member using a vertical splice plate fastened with high-strength structural bolts and nuts. The connection features a welded joint on the stem indicated by a weld symbol referencing a specific structural note. The overlapping steel elements transfer shear and axial forces through the bolt group and welded interface.
