Structural · S-RNTZK

Welded Corebrace At Floor

Materials

weld

Elements

Columns Beams Roofs Floors / Slabs Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection Welded Connection

About this detail

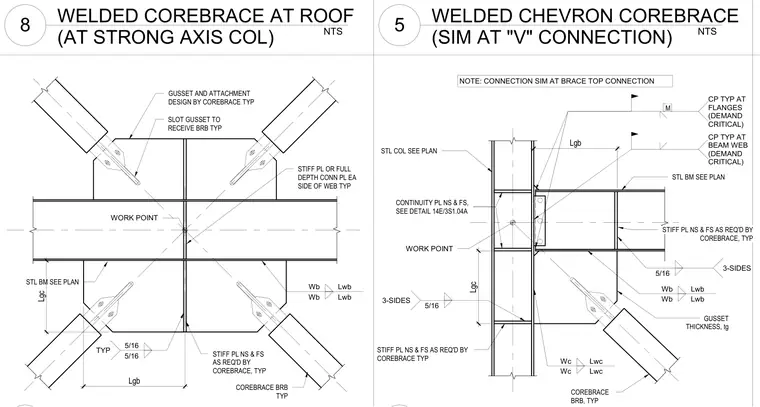

A welded buckling-restrained brace connection at a structural steel roof level frames into a strong-axis column. The assembly features diagonal corebrace buckling-restrained braces slotted and welded to gusset plates, with stiffener plates provided on near side and far side as required. Steel beams and columns are sized per plan, incorporating demand-critical complete-joint-penetration welds at the beam flanges and web. Continuity plates are specified on both the near side and far side, along with five-sixteenths fillet welds applied on three sides.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
