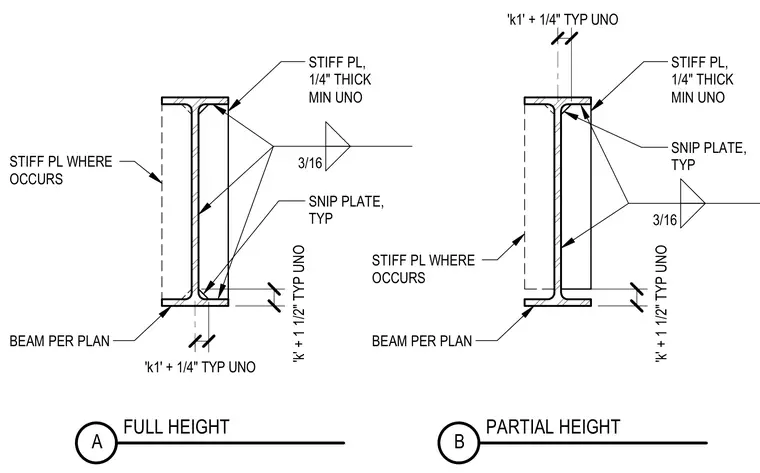

Steel web stiffener plates are welded to the web and flanges of a wide flange beam per plan where required. The assembly includes a minimum one-quarter-inch thick stiffener plate with a typical snip plate detail at the flange intersection. A three-sixteenths-inch fillet weld attaches the stiffener plate to the beam web. Dimensions are governed by the beam k-distance plus one and one-half inches typical unless otherwise noted. Both full height and partial height stiffener configurations are provided.
3/16 STIFF PL, 1/4" THICK MIN UNO SNIP PLATE, TYP BEAM PER PLAN STIFF PL WHERE OCCURS 'k1' + 1/4" TYP UNO FULL HEIGHT A PARTIAL HEIGHT B 3/16 SNIP PLATE, TYP 'k' + 1 1/2" TYP UNO BEAM PER PLAN STIFF PL WHERE OCCURS STIFF PL, 1/4" THICK MIN UNO 'k' + 1 1/2" TYP UNO 'k1' + 1/4" TYP UNO
