A perimeter bent plate is centered on the hollow structural section beam with a three-eighths by twelve-inch plate welded using five-sixteenth-inch fillet welds. The assembly maintains a one-foot two-and-three-quarter-inch dimension to the face of finish, with a three-inch offset at the perimeter bent plate. Additional one-quarter-inch and five-sixteenth-inch fillet welds secure the structural steel components together.

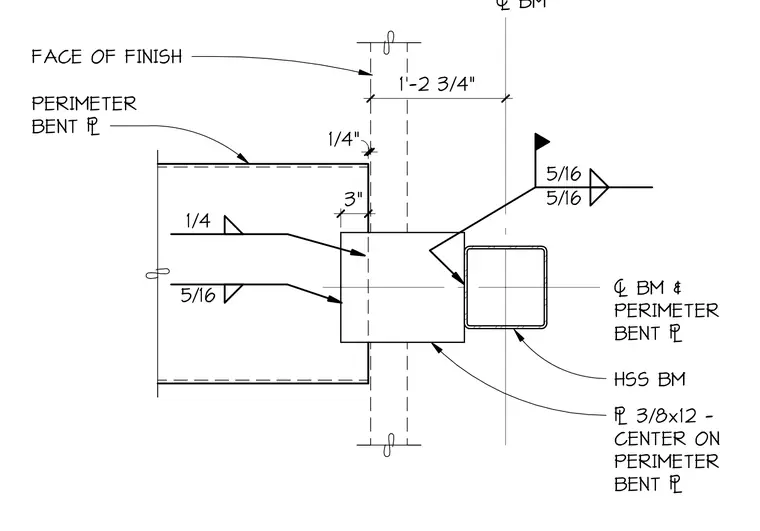

PERIMETER BENT & FACE OF FINISH ! BM 1/4" 1'-2 3/4" 1/4 5/16 5/16 5/16 ! BM & PERIMETER BENT & HSS BM & 3/8x12 - CENTER ON PERIMETER BENT & 3"
