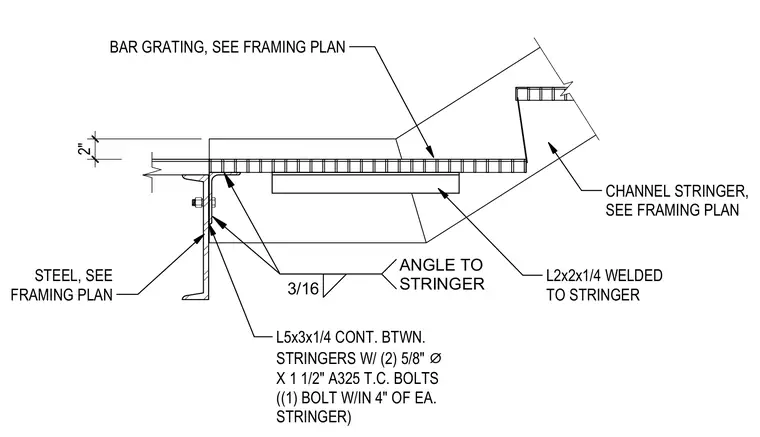

Bar grating rests on a continuous L5x3x1/4 angle spanning between the steel channel stringers and fastened with two 5/8-inch diameter by 1 1/2-inch ASTM A325 twist-control bolts with one bolt within 4 inches of each stringer. An L2x2x1/4 angle is welded to the stringer with a 3/16-inch fillet weld.
BAR GRATING, SEE FRAMING PLAN CHANNEL STRINGER, SEE FRAMING PLAN 2" L5x3x1/4 CONT. BTWN. STRINGERS W/ (2) 5/8" ⌀ X 1 1/2" A325 T.C. BOLTS ((1) BOLT W/IN 4" OF EA. STRINGER) STEEL, SEE FRAMING PLAN L2x2x1/4 WELDED TO STRINGER 3/16 ANGLE TO STRINGER
