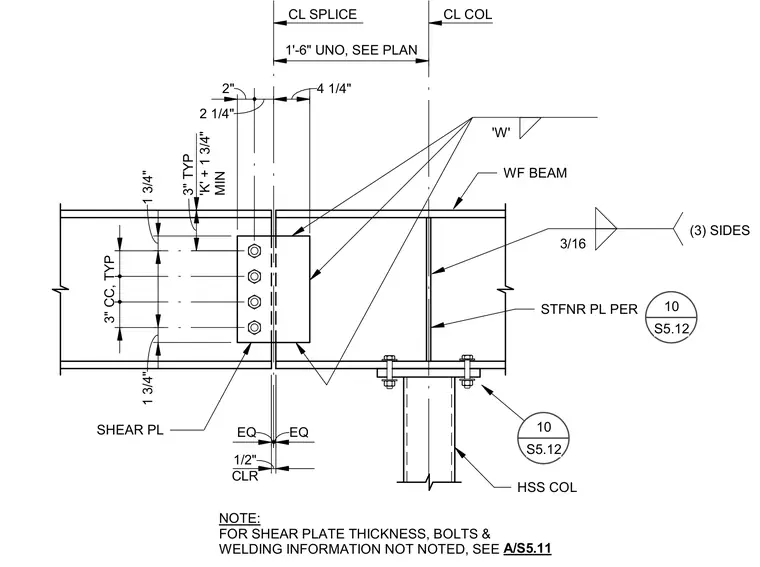

Two aligned wide flange beams connect end-to-end at a field splice location centered over a hollow structural section column support. A vertical shear plate with four bolts ties the beam webs together across a one-half inch clearance gap. A stiffener plate is welded inside the right beam web directly above the column support using a three-sixteenths inch fillet weld on three sides. The right beam rests on a bolted connection plate bearing directly onto the top of the HSS column. Unnotified plate thicknesses, bolt sizes, and weld specifications refer to sheet A/S5.11.
SHEAR PL WF BEAM STFNR PL PER HSS COL 2" 2 1/4" 4 1/4" NOTE: FOR SHEAR PLATE THICKNESS, BOLTS & WELDING INFORMATION NOT NOTED, SEE 1'-6" UNO, SEE PLAN EQ EQ CLR 1/2" 'W' 3/16 (3) SIDES 3" CC, TYP 1 3/4" 1 3/4" 3" TYP 'K' + 1 3/4" MIN CL COL CL SPLICE 10 S5.12 10 S5.12 A/S5.11
