Deck Support Framing at Interior Wide Flange Column

Materials

Elements

About this detail

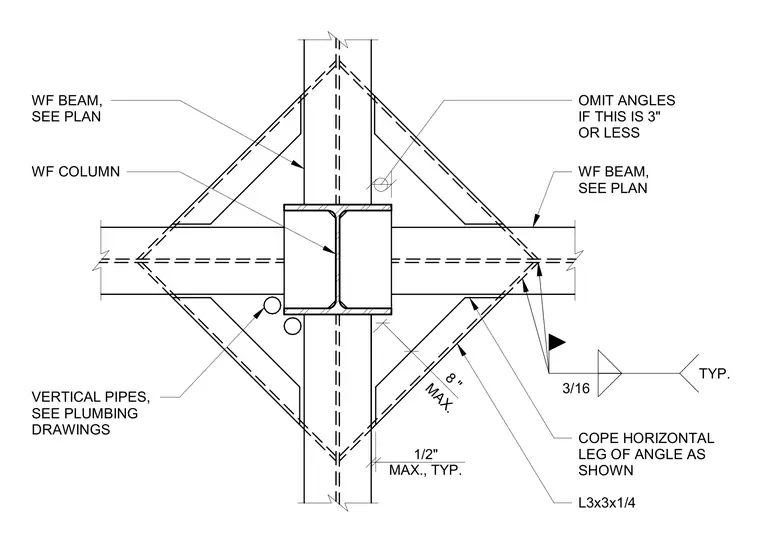

Steel deck support framing surrounds an interior wide flange column. Wide flange beams frame into the column flange and web as sized per plan, flanked by diagonal angle sections designated as L3x3x1/4 with a maximum eight-inch leg length. The horizontal leg of the angle is coped as shown, and angles are omitted if the space is three inches or less. A three-sixteenths inch typical fillet weld connects the assembly. Vertical pipes are accommodated nearby with a half-inch maximum typical clearance, with exact routing coordinated per plumbing drawings.
