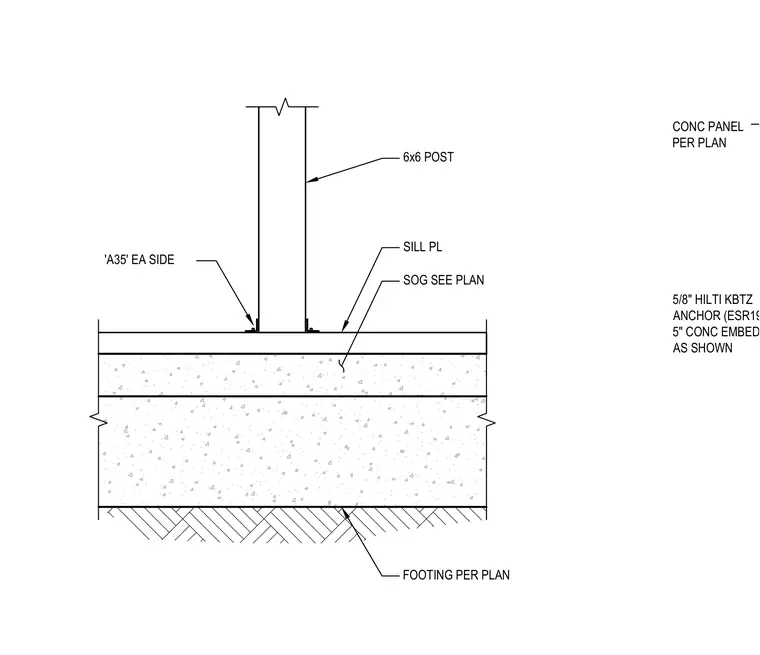

A six by six timber post is anchored to a sill plate bearing on a slab on grade and underlying concrete footing. The post connects with A35 framing clips on each side. A five-eighths-inch Hilti KBTZ anchor with a five-inch concrete embedment secures the assembly. The concrete panel, slab on grade, and footing are sized per plan.
5/8" HILTI KBTZ ANCHOR (ESR1917) W/ 5" CONC EMBED, TYP AS SHOWN CONC PANEL PER PLAN 6x6 POST SILL PL SOG SEE PLAN FOOTING PER PLAN 'A35' EA SIDE
