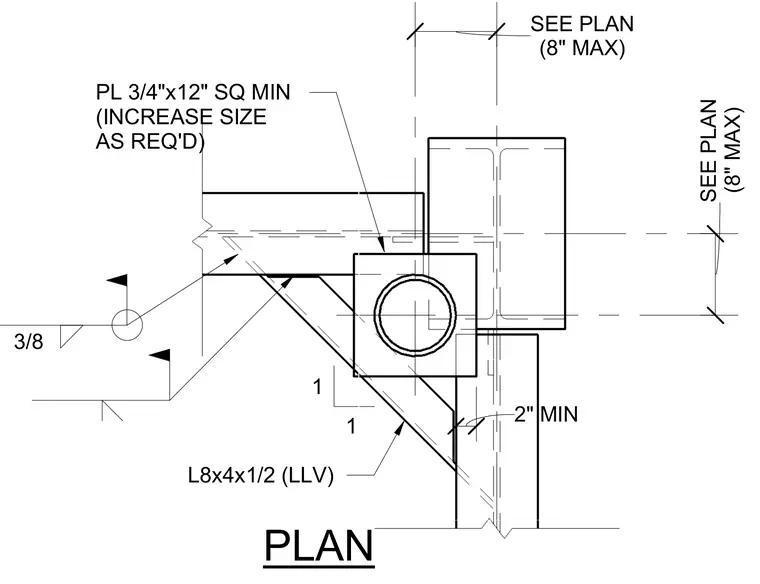

An L8x4x1/2 angle brace connects to a 3/4-inch square minimum plate at a hollow structural section column, with sizes and dimensions adjustable as required per plan. A three-eighths-inch fillet weld secures the connection assembly. Spacing includes a two-inch minimum clearance.
PLAN L8x4x1/2 (LLV) 1 1 PL 3/4"x12" SQ MIN (INCREASE SIZE AS REQ'D) (8" MAX) SEE PLAN (8" MAX) SEE PLAN 2" MIN 3/8
