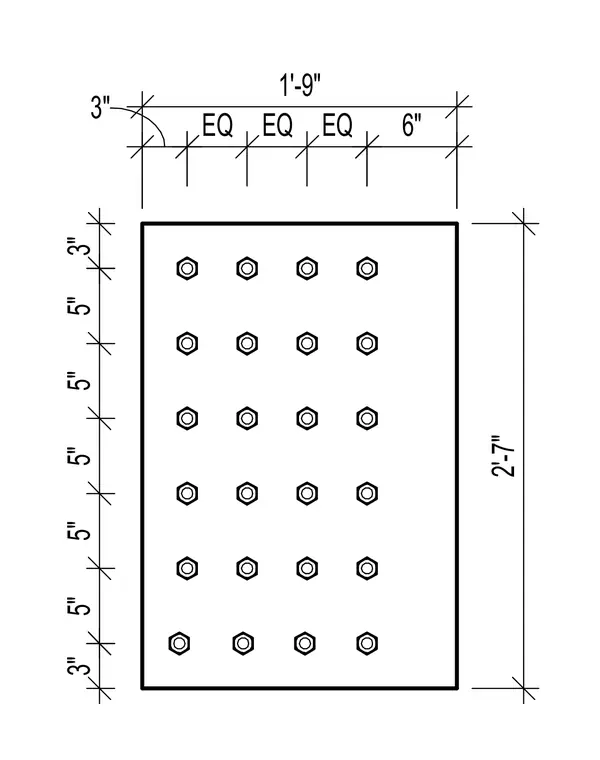

This embedded steel plate measures one foot nine inches by two feet seven inches with a four-by-six grid of anchor bolts. The twenty-four bolts are spaced at five inches vertically with three-inch edge distances, and spaced equally horizontally with six-inch and three-inch edge dimensions.
