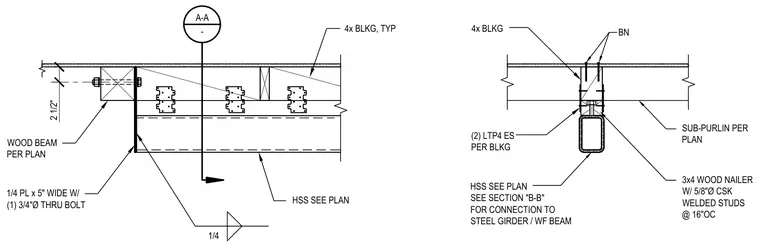

A three-by-four wood nailer with five-eighth-inch diameter countersunk welded studs spaced at sixteen inches on center bears on a hollow structural section member sized per plan. Wood blocking members and two LTP4 clips per blocking secure the sub-purlin framing. A one-quarter-inch plate measuring five inches wide connects the wood beam using a single three-quarter-inch diameter through bolt. A one-quarter-inch weld connects the plate to the hollow structural section member. Additional connection details to the steel girder or wide flange beam are referenced in section B-B.
3x4 WOOD NAILER W/ 5/8"Ø CSK WELDED STUDS @ 16"OC HSS SEE PLAN SEE SECTION "B-B" FOR CONNECTION TO STEEL GIRDER / WF BEAM BN (2) LTP4 ES PER BLKG 4x BLKG SUB-PURLIN PER PLAN 1/4 HSS SEE PLAN 1/4 PL x 5" WIDE W/ (1) 3/4"Ø THRU BOLT A-A - 4x BLKG, TYP 2 1/2" WOOD BEAM PER PLAN
