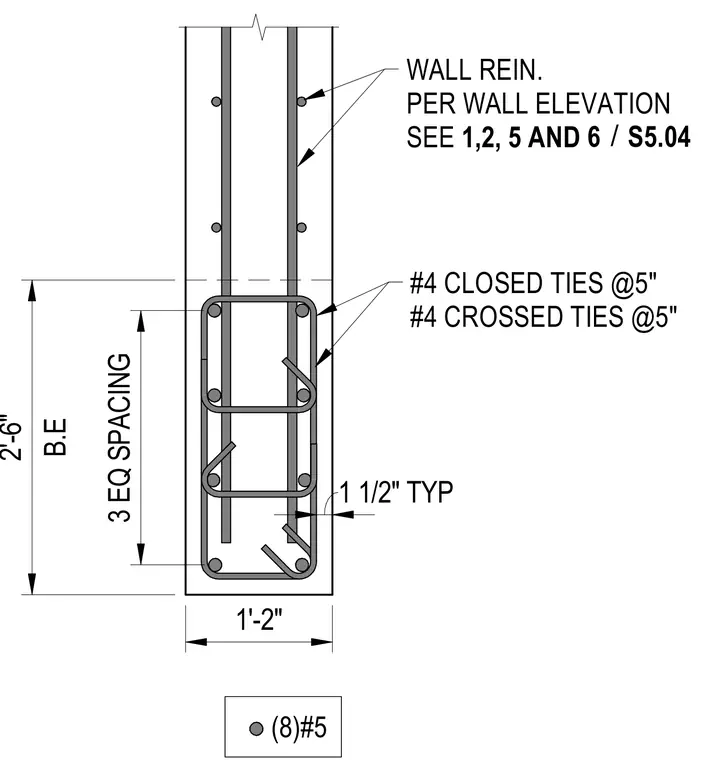

A concrete wall boundary element measuring one foot two inches wide by two feet six inches deep features eight number 5 vertical bars enclosed by number 4 closed ties at five inches on center and number 4 crossed ties at five inches on center. Wall reinforcement elsewhere is provided per the wall elevations referenced on sheet S5.04. A typical clear cover of one and one-half inches is maintained.
1'-2" 1 1/2" TYP B.E 2'-6" (8)#5 #4 CLOSED TIES @5" #4 CROSSED TIES @5" WALL REIN. PER WALL ELEVATION SEE 1,2, 5 AND / 6 S5.04 3 EQ SPACING
