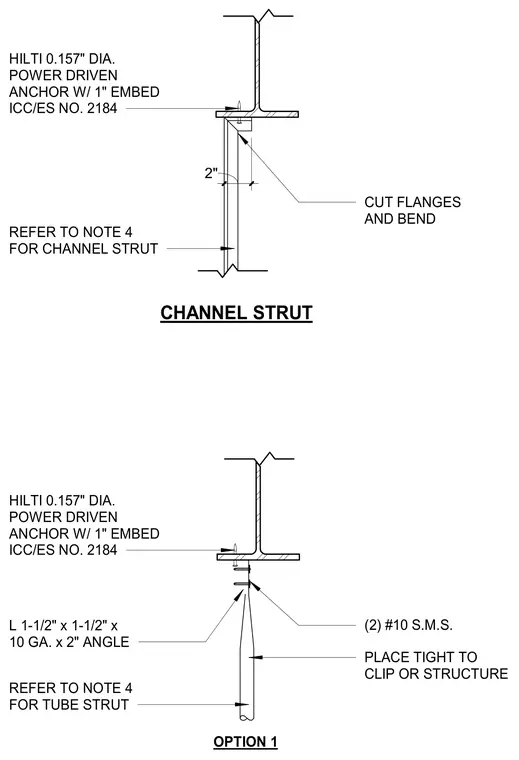

A channel strut or tube strut is braced against a structural steel beam flange using a 1-1/2 inch by 1-1/2 inch by 10 gauge angle and power-driven anchors. The assembly is secured with 0.157-inch diameter power-driven anchors with a 1-inch embedment complying with ICC/ES No. 2184, placed tight to the clip or structure. The channel strut variation utilizes cut and bent flanges, while option 1 connects the tube strut using two number 10 sheet metal screws.
2" HILTI 0.157" DIA. POWER DRIVEN ANCHOR W/ 1" EMBED ICC/ES NO. 2184 CUT FLANGES AND BEND REFER TO NOTE 4 FOR CHANNEL STRUT CHANNEL STRUT HILTI 0.157" DIA. POWER DRIVEN ANCHOR W/ 1" EMBED ICC/ES NO. 2184 L 1-1/2" x 1-1/2" x 10 GA. x 2" ANGLE (2) #10 S.M.S. PLACE TIGHT TO CLIP OR STRUCTURE OPTION 1 REFER TO NOTE 4 FOR TUBE STRUT
