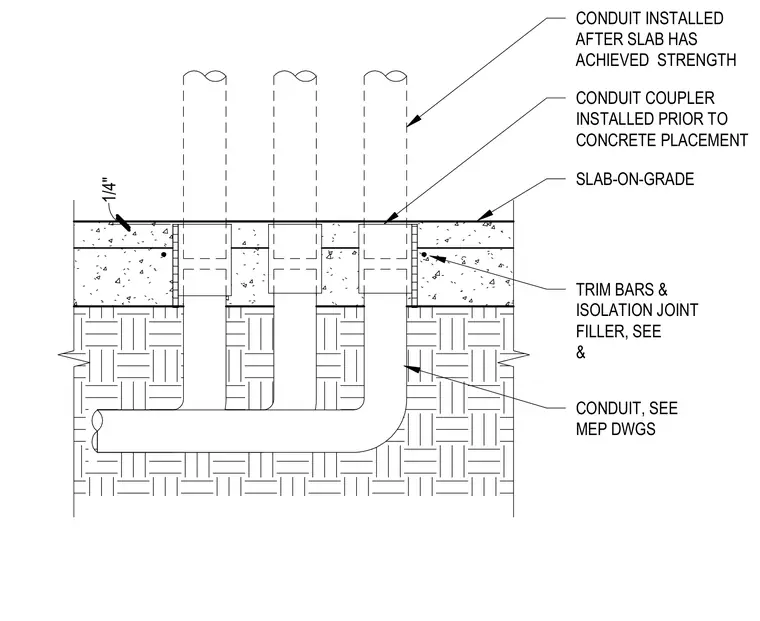

Conduit couplers are installed prior to concrete placement within the slab-on-grade assembly. Additional conduit is installed after the slab has achieved strength, connecting to the pre-installed couplers. Trim bars and isolation joint filler are provided around the penetrations per structural drawings. The underfloor conduit layout is sized and routed per mechanical, electrical, and plumbing drawings.
CONDUIT, SEE MEP DWGS CONDUIT COUPLER INSTALLED PRIOR TO CONCRETE PLACEMENT TRIM BARS & ISOLATION JOINT FILLER, SEE & SLAB-ON-GRADE CONDUIT INSTALLED AFTER SLAB HAS ACHIEVED STRENGTH 1/4"
