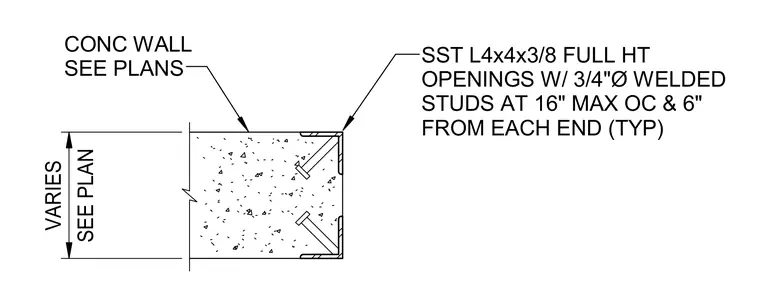

A structural stainless steel angle, size L4x4x3/8, runs full height at the concrete wall opening. Three-quarter-inch diameter welded studs anchor into the concrete at sixteen inches maximum on center and six inches from each end typically.
CONC WALL SEE PLANS SST L4x4x3/8 FULL HT OPENINGS W/ 3/4"Ø WELDED STUDS AT 16" MAX OC & 6" FROM EACH END (TYP) SEE PLAN VARIES
