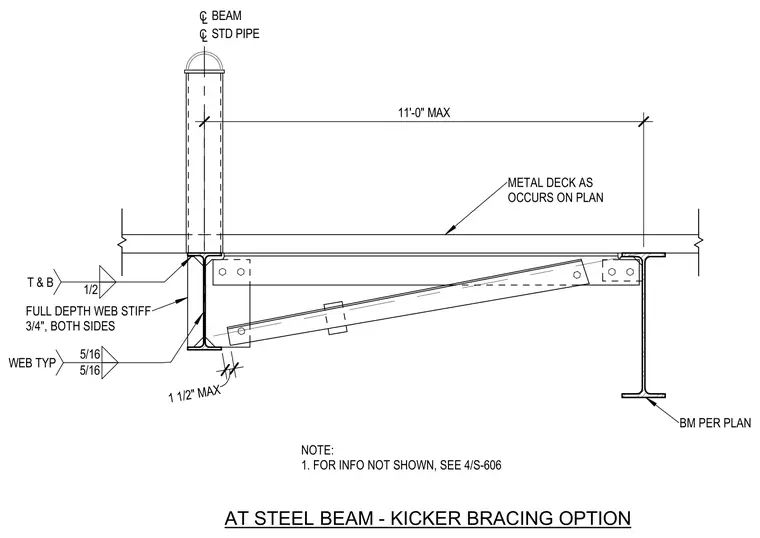

A standard pipe post bears above a supporting steel beam sized per plan with a maximum eleven-foot spacing to adjacent framing. A diagonal kicker brace extends from the beam web to stabilize the post assembly, secured with bolted connections at both ends. Full depth web stiffeners measuring three-quarters of an inch thick are welded to both sides of the support beam web using five-sixteenths inch fillet welds. A half-inch top and bottom weld secures the post base connection. Metal decking runs continuously across the structural framing as indicated on plan.
METAL DECK AS OCCURS ON PLAN 11'-0" MAX 5/16 5/16 WEB TYP NOTE: 1. FOR INFO NOT SHOWN, SEE 4/S-606 C L STD PIPE C L BEAM BM PER PLAN 1 1/2" MAX FULL DEPTH WEB STIFF 3/4", BOTH SIDES 1/2 T & B AT STEEL BEAM - KICKER BRACING OPTION
