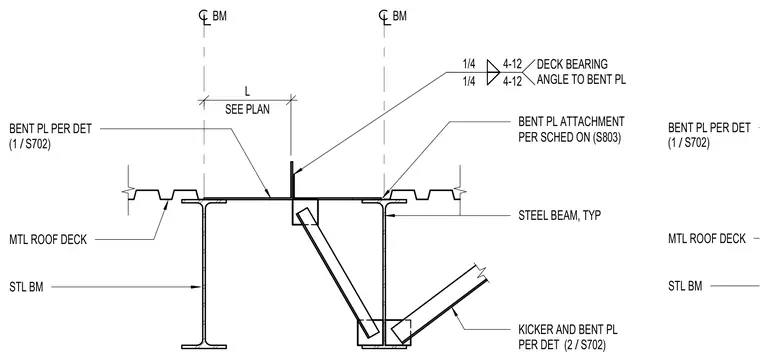

Metal roof deck bears across structural steel beams with a bent plate attachment configured per schedule on sheet S803. A deck bearing angle connects to the bent plate using quarter-inch fillet welds spaced at four to twelve inches. A kicker and bent plate assembly provides lateral support between the steel beams. A framed opening is detailed with bent plates sized per plan.
BM MTL ROOF DECK BENT PL ATTACHMENT PER SCHED ON (S803) BENT PL PER DET STEEL BEAM, TYP SEE PLAN L 1/4 1/4 4-12 4-12 DECK BEARING ANGLE TO BENT PL / (1 S702) BM KICKER AND BENT PL PER DET / (2 S702) STL BM MTL ROOF DECK BENT PL PER DET / (1 S702) STL BM
