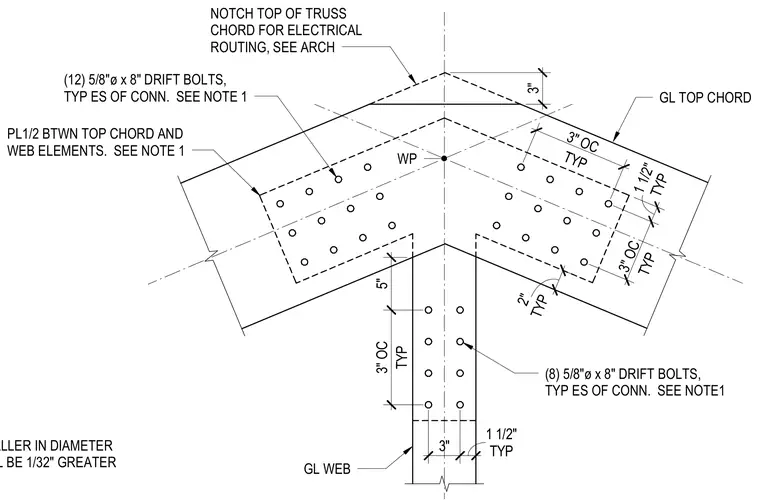

A glulam truss ridge connection incorporates a one-half-inch steel plate sandwiched between the top chord and web elements. The assembly is fastened on each side of the connection with twelve five-eighth-inch diameter by eight-inch drift bolts at the top chord and eight five-eighth-inch diameter by eight-inch drift bolts at the web. Bolt holes in the glulam members are sized one-thirty-second inch smaller in diameter than the drift bolts, while holes in the steel plate are sized one-thirty-second inch greater. A three-inch notch is detailed at the top of the truss chord for electrical routing.
3" NOTCH TOP OF TRUSS CHORD FOR ELECTRICAL ROUTING, SEE ARCH HOLES IN GLULAM MEMBERS SHALL BE 1/32" SMALLER IN DIAMETER THAN DRIFT BOLT. HOLES IN STEEL PLATE SHALL BE 1/32" GREATER TYP 3" OC 5" 3" TYP 1 1/2" TYP 3" OC TYP 1 1/2" TYP 3" OC TYP 2" WP GL TOP CHORD (12) 5/8"ø x 8" DRIFT BOLTS, TYP ES OF CONN. SEE NOTE 1 PL1/2 BTWN TOP CHORD AND WEB ELEMENTS. SEE NOTE 1 GL WEB (8) 5/8"ø x 8" DRIFT BOLTS, TYP ES OF CONN. SEE NOTE1
