One-inch-thick low-density expanded polystyrene bead board is provided at the end of the casing where buried in concrete. A one-inch clearance is maintained at the sides and a three-inch clearance is maintained at the ends between the casing and the concrete. The casing aligns with the top of concrete reference line.

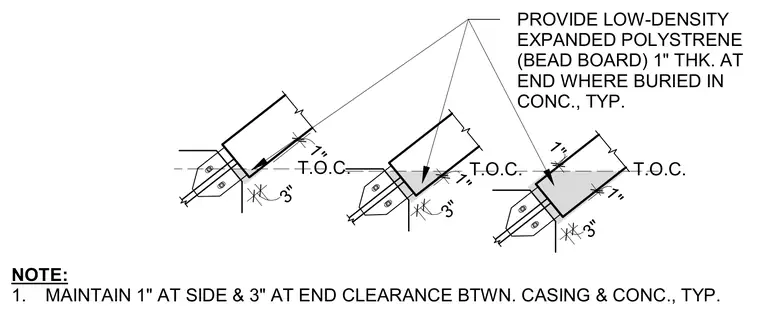

3" 1" 1" PROVIDE LOW-DENSITY EXPANDED POLYSTRENE (BEAD BOARD) 1" THK. AT END WHERE BURIED IN CONC., TYP. T.O.C. 3" 1" T.O.C. 3" 1" T.O.C. NOTE: 1. MAINTAIN 1" AT SIDE & 3" AT END CLEARANCE BTWN. CASING & CONC., TYP.
