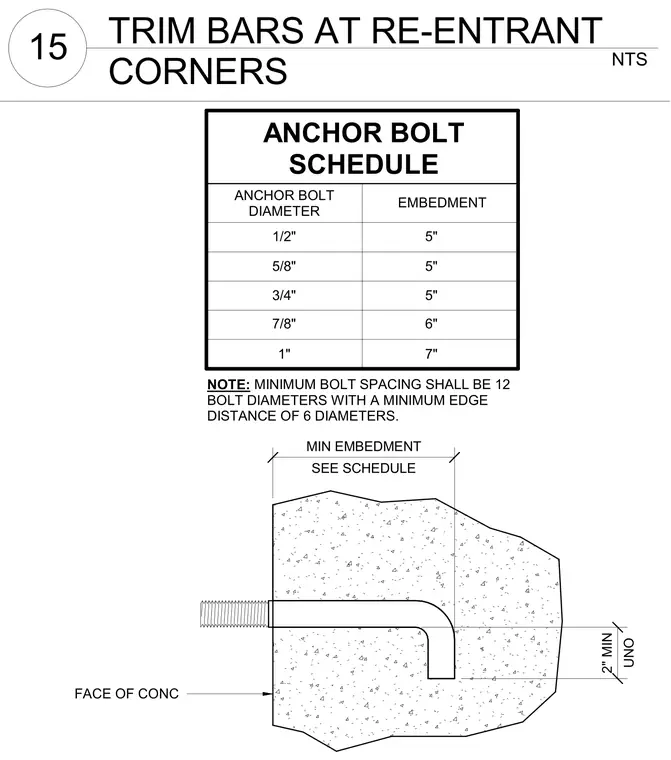

An anchor bolt schedule dictates embedment depths ranging from five to seven inches for bolt diameters spanning one-half to one inch. An L-shaped anchor bolt is set into the concrete mass with a minimum embedment depth noted per schedule and a two-inch minimum unless otherwise noted. General notes specify that minimum bolt spacing shall be twelve bolt diameters with a minimum edge distance of six diameters.
ANCHOR BOLT SCHEDULE 1/2" 3/4" 5/8" 7/8" ANCHOR BOLT DIAMETER 1" 7" 5" 6" 5" 5" EMBEDMENT FACE OF CONC NOTE: MINIMUM BOLT SPACING SHALL BE 12 BOLT DIAMETERS WITH A MINIMUM EDGE DISTANCE OF 6 DIAMETERS. SEE SCHEDULE MIN EMBEDMENT UNO 2" MIN NTS 15 TRIM BARS AT RE-ENTRANT CORNERS
