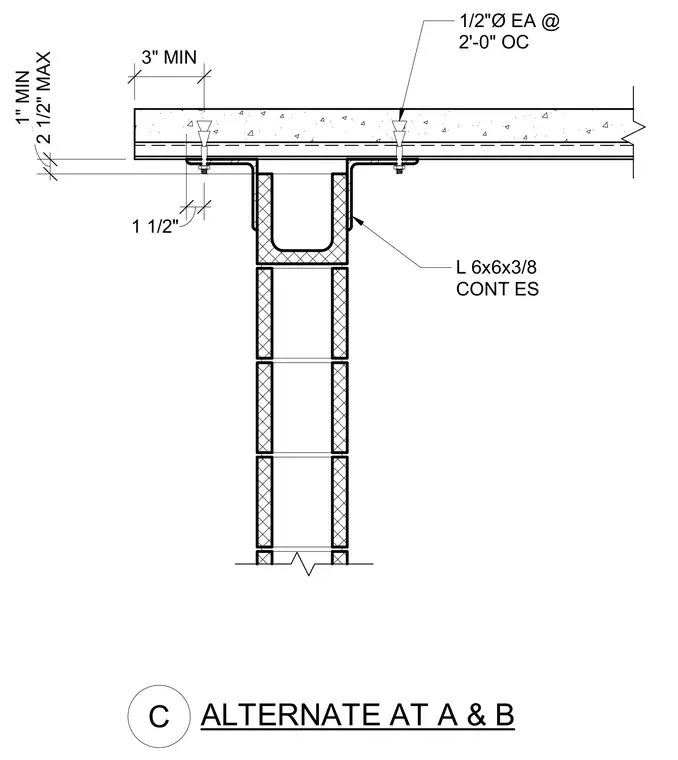

A concrete slab connects to a concrete masonry unit wall using continuous 6x6x3/8-inch angles on each side. Half-inch diameter anchor bolts secure the assembly at two-foot intervals on center. Minimum and maximum edge distances and clearances govern the placement of the hardware relative to the slab edge.
1/2"Ø EA @ 2'-0" OC L 6x6x3/8 CONT ES C ALTERNATE AT A & B 1 1/2" 3" MIN 2 1/2" MAX 1" MIN
