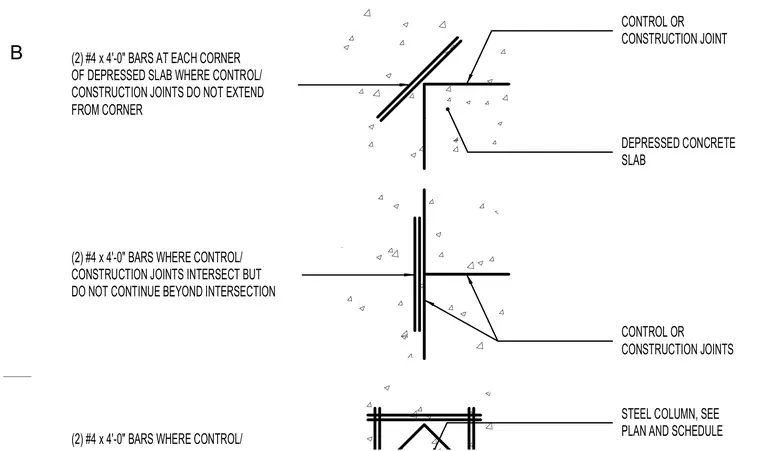

Two number four by four-foot reinforcing bars are placed at each corner of a depressed concrete slab where control and construction joints do not extend from the corner. Additional two number four by four-foot bars are provided where control and construction joints intersect but do not continue beyond the intersection. A steel column location is coordinated per plan and schedule relative to the slab joints.
CONTROL OR CONSTRUCTION JOINTS STEEL COLUMN, SEE PLAN AND SCHEDULE DEPRESSED CONCRETE SLAB (2) #4 x 4'-0" BARS WHERE CONTROL/ (2) #4 x 4'-0" BARS WHERE CONTROL/ CONSTRUCTION JOINTS INTERSECT BUT DO NOT CONTINUE BEYOND INTERSECTION (2) #4 x 4'-0" BARS AT EACH CORNER OF DEPRESSED SLAB WHERE CONTROL/ CONSTRUCTION JOINTS DO NOT EXTEND FROM CORNER CONTROL OR CONSTRUCTION JOINT B
