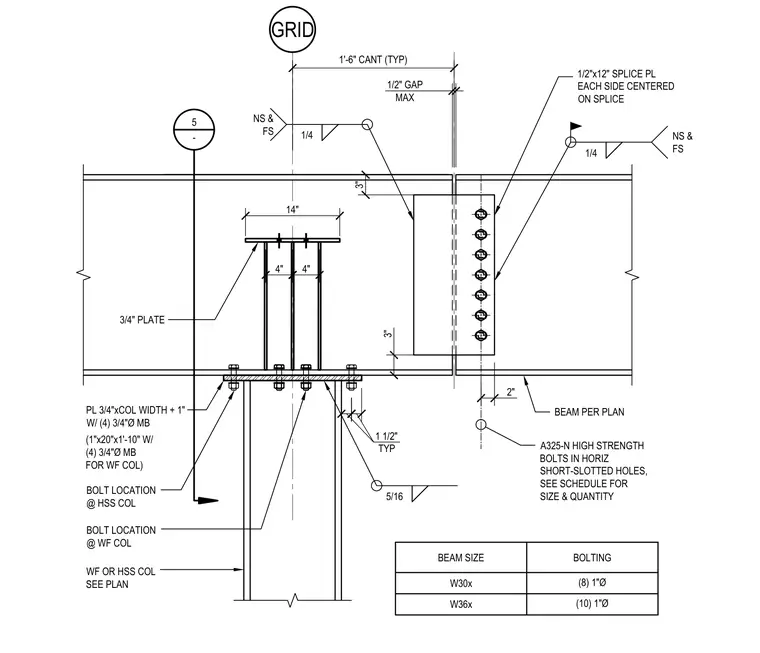

A structural steel beam connects to a wide-flange or hollow structural section column with a top bearing plate and bolted side splice plates. A 3/4-inch plate sits atop the column, secured by four 3/4-inch diameter machine bolts for wide-flange columns. A 1/2-inch by 12-inch splice plate is centered on the beam web on each side, utilizing A325-N high-strength bolts in horizontal short-slotted holes sized according to the schedule. Fillet welds of 1/4-inch and 5/16-inch sizes are specified at the plate connections on near side and far side as indicated. A maximum 1/2-inch gap is maintained at the joint, with beam sizes such as W30x and W36x matched to specific bolting quantities.
4" 4" 2" WF OR HSS COL SEE PLAN 1'-6" CANT (TYP) 3" 5/16 GRID 14" 3/4" PLATE 1/4 1/2" GAP MAX NS & FS 1/2"x12" SPLICE PL EACH SIDE CENTERED ON SPLICE BEAM PER PLAN A325-N HIGH STRENGTH BOLTS IN HORIZ SHORT-SLOTTED HOLES, SEE SCHEDULE FOR SIZE & QUANTITY 5 - (1"x20"x1'-10" W/ (4) 3/4"Ø MB FOR WF COL) 1/4 3" PL 3/4"xCOL WIDTH + 1" W/ (4) 3/4"Ø MB 1 1/2" TYP BOLT LOCATION @ HSS COL BOLT LOCATION @ WF COL BEAM SIZE BOLTING W30x (8) 1"Ø W36x (10) 1"Ø NS & FS
