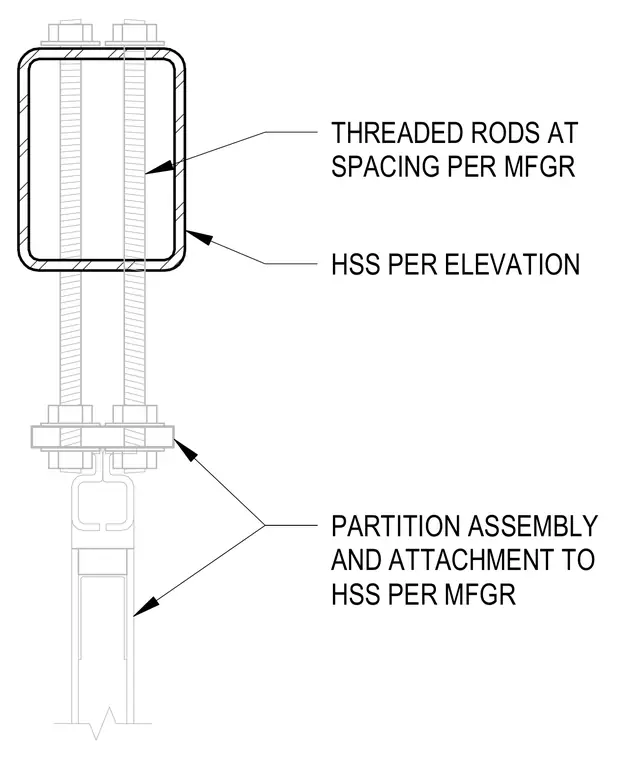

An operable partition assembly is suspended from an overhead hollow structural section using vertical threaded rods spaced according to the manufacturer requirements. The threaded rods pass through the structural member and connect to the partition track assembly below with nuts and washers. The hollow structural section size is determined per the structural elevations. The partition assembly and its structural attachment details follow the manufacturer specifications.
THREADED RODS AT SPACING PER MFGR PARTITION ASSEMBLY AND ATTACHMENT TO HSS PER MFGR HSS PER ELEVATION
